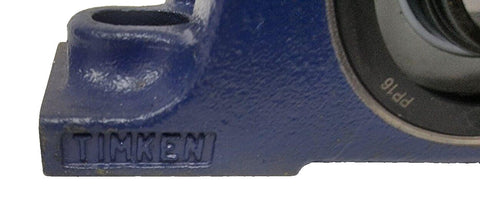

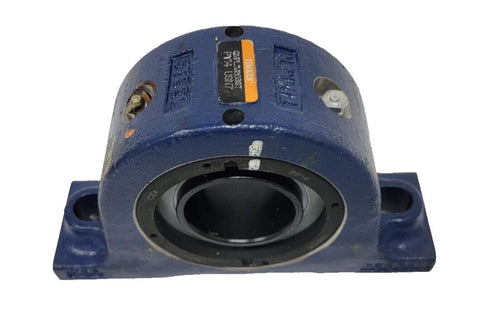

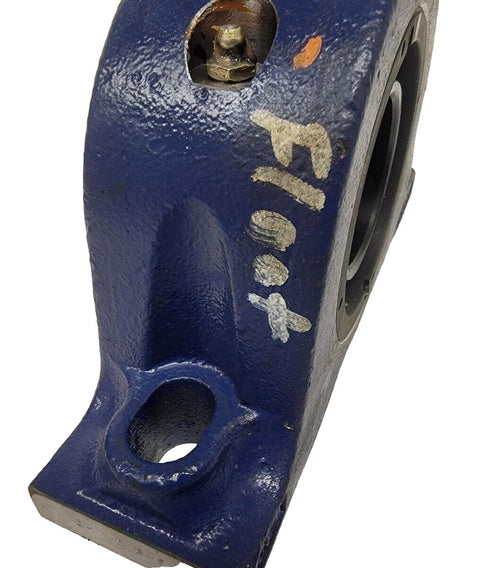

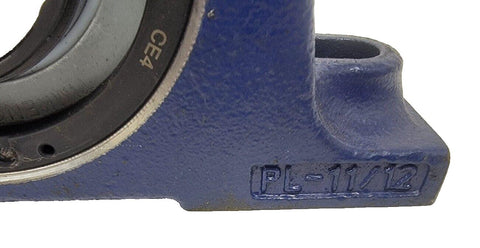

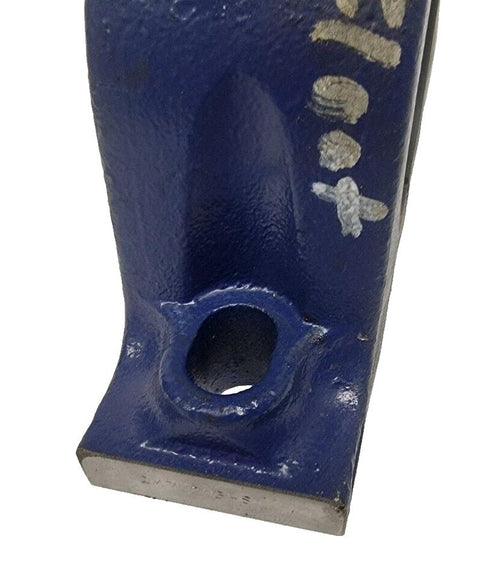

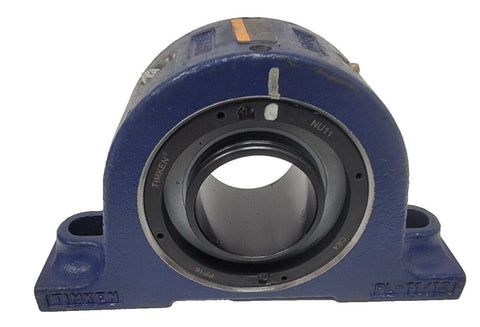

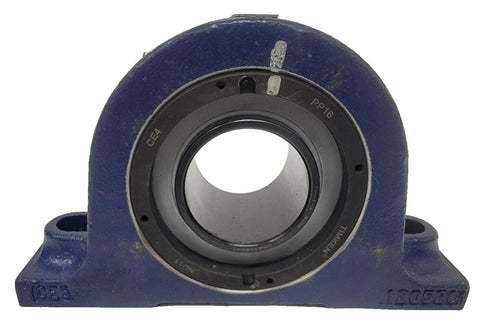

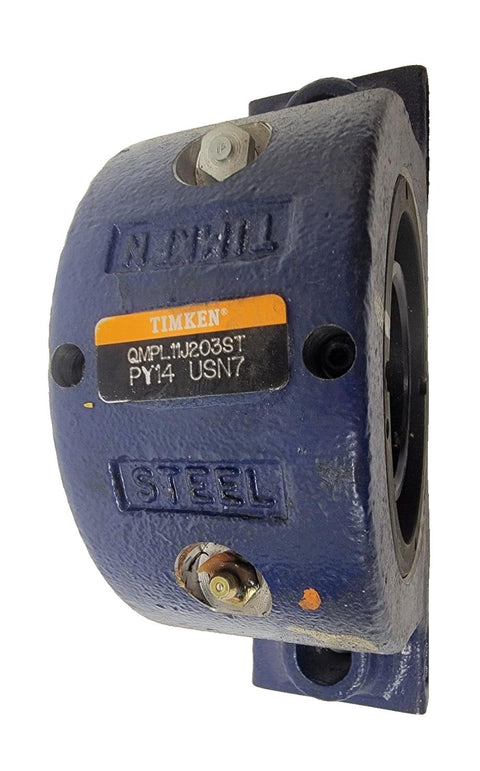

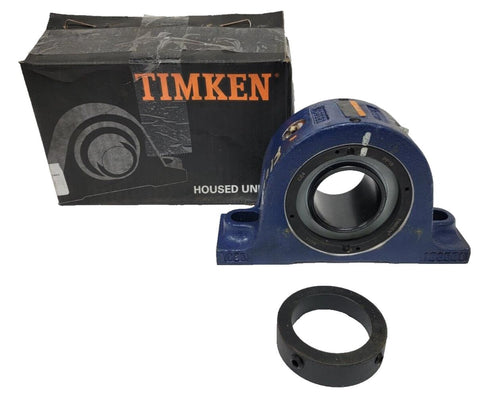

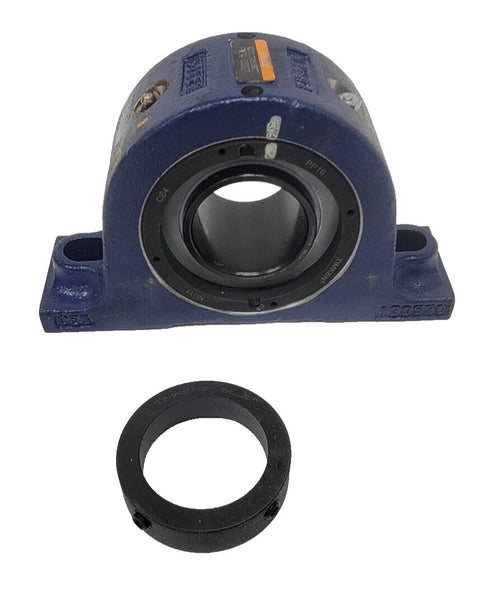

New old stock. Prepped for install but never used. Has some minor shelf wear scuffs and blemishes. Please inspect photos closely to see marks and scuffs.
Fast US shipping
30 day warranty.
MFR Details:
Bore Diameter
Bolt Center To Center Length
6.7800 in
Bore Type
Cylindrical
Base To Bore Centerline
2.5000 in
Overall Length
Locking Device
Eccentric Collar
Housing Material
Cast Steel
Housing Construction
Solid
Type Of Bearing
Mounted Roller Bearing
Overall Height
Duty Type
Heavy Duty
Bearing Material
Steel
Base Width
2.5800 in
Expansion Type
Non-Expansion Bearing (Fixed)
Finish Coating
Powder Coated
Overall Width
3.2800 in
Seal Type
Labyrnith non-contacting, non-purging seal with DuPont™ Teflon®
Radial Dynamic Load Capacity
31400 lbf
Radial Static Load Capacity
31900 lbf
Length Through Bore
3.12 in
Lubrication Type
Lubrication Fitting
End Type
Open
Bolt Size
0.625 in
Series
QMPL
Additional Details
T Seal - Labyrinth seal consists of a Teflon® ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment. When using this seal, the housing comes with a vent fitting. Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals.
