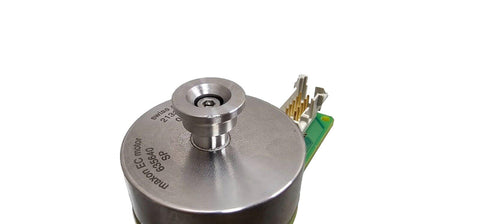

Swiss Maxon EC45 ASAHI Brushless Motor, 538771-03, 635640 Hub w/ Hall Sensors
Swiss Maxon EC45 ASAHI Brushless Motor, 538771-03, 635640 Hub w/ Hall Sensors
Swiss Maxon EC45 ASAHI Brushless Motor, 538771-03, 635640 Hub w/ Hall Sensors
Swiss Maxon EC45 ASAHI Brushless Motor, 538771-03, 635640 Hub w/ Hall Sensors
Swiss Maxon EC45 ASAHI Brushless Motor, 538771-03, 635640 Hub w/ Hall Sensors
Swiss Maxon EC45 ASAHI Brushless Motor, 538771-03, 635640 Hub w/ Hall Sensors

Swiss Maxon EC45 ASAHI Brushless Motor, 538771-03, 635640 Hub w/ Hall Sensors

Regular price $159.99 Save $-159.99
/

Only 2 items in stock!
Product never entered service, but it was removed from packaging and handled / prepped for install.  Because of this we're going to call it used.

This device is a customized variant of the EC45, finding exact specs have proven difficult.  Believed to be an over engineered variant built to withstand ultra precise movements (due to where it came from)

Technical characteristics below are built off the original and may be different!

Values at nominal voltage
Nominal voltage 24 V
No load speed 6110 rpm
No load current 234 mA
Nominal speed 4860 rpm
Nominal torque (max. continuous torque) 128 mNm
Nominal current (max. continuous current) 3.21 A
Stall torque 1460 mNm
Stall current 39.5 A
Max. efficiency 85 %
Characteristics
Terminal resistance 0.608 Ω
Terminal inductance 0.463 mH
Torque constant 36.9 mNm/A
Speed constant 259 rpm/V
Speed / torque gradient 4.26 rpm/mNm
Mechanical time constant 8.07 ms
Rotor inertia 181 gcm²
Thermal data
Thermal resistance housing-ambient 3.56 K/W
Thermal resistance winding-housing 4.1 K/W
Thermal time constant winding 29.6 s
Thermal time constant motor 178 s
Ambient temperature -40...+100 °C
Max. winding temperature +125 °C
Mechanical data
Bearing type ball bearings
Max. speed 10000 rpm
Axial play {0} {1}, at radial load {2} {3} {4}
0.14 mm, at radial load > 4 N
Max. axial load (dynamic) 3.8 N
Max. force for press fits (static) 50 N
(static, shaft supported) 1000 N
Max. radial load 21 N, 5 mm from flange
Other specifications
Number of pole pairs 8
Number of phases 3
Number of autoclave cycles 0
Product
Weight 141 g
