MFR Details:
Overview | |

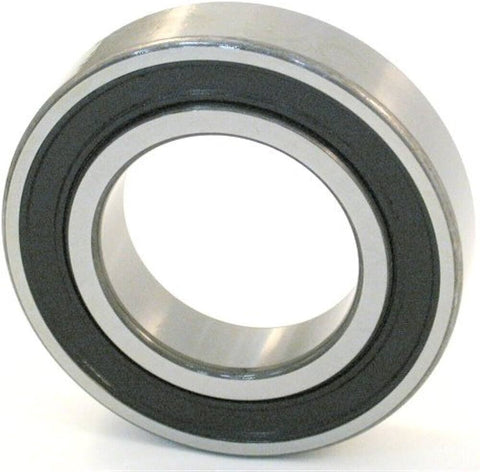

| Part Number | 6005-2RSJEM |
Brand: LILY
|
Interchangeable With: SKF |
Characteristics | |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Construction | Single Row |
| Bearing Type | Ball |
| Seal Type | Sealed |
| Tolerance Class | ABEC 1 | ISO P0 |
| Radial Clearance Trade No | CN |
Dimensions | |
| Bore Dia | 25 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 47 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width | 12 mm |
| Width Tolerance | -0.120mm to 0 |
Material | |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Chrome Steel |
Performance | |
| Dynamic Radial Load | 2271 lbf |
| Static Radial Load | 1315 lbf |
| Max Speed (X1000 rpm) | 15 |
| Temperature Range | -30°to 120 °C |
Properties | |
| Lubrication | None |
| ROHS | Compliant |
| REACH | Compliant |
| Weight | 80 g |
