MFR Details:
Dimensions
Overall Height 1 21/32 in
Overall Width 23/32 in
Pilot Port Size 1/8 in NPT
Overall Length 4 21/32 in
Pipe Size 1/8 in
Exhaust Port Connection Size 1/8 in
Pilot Port Connection Size 1/8 in
Inlet Port Connection Size 1/8 in
Details

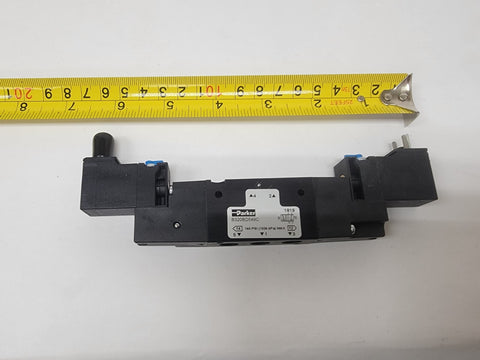

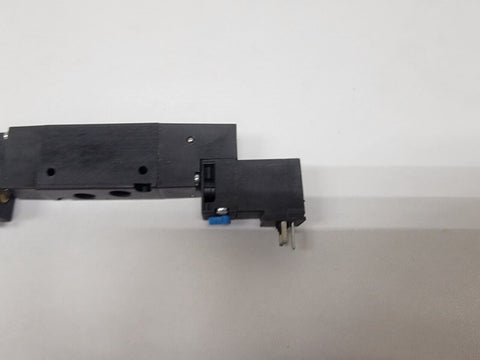

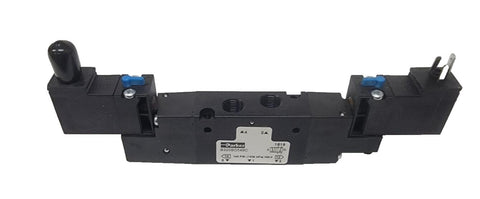

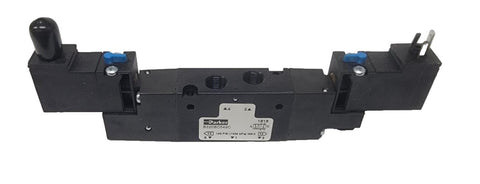

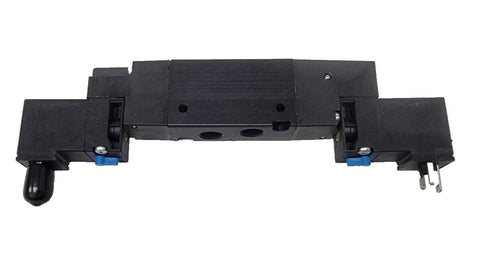

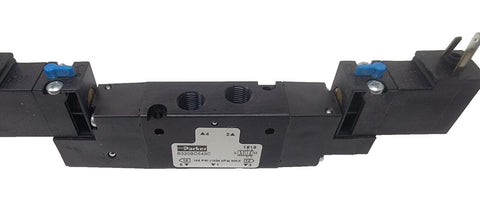

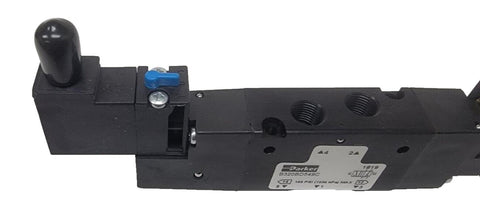

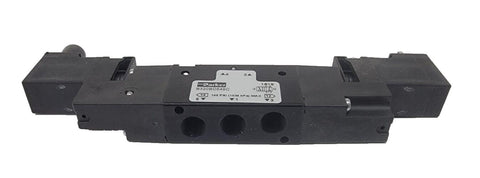

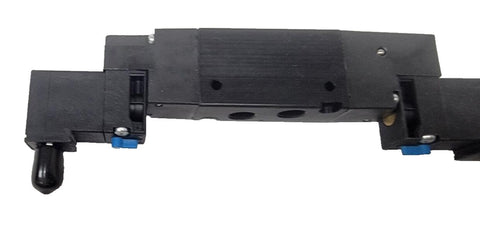

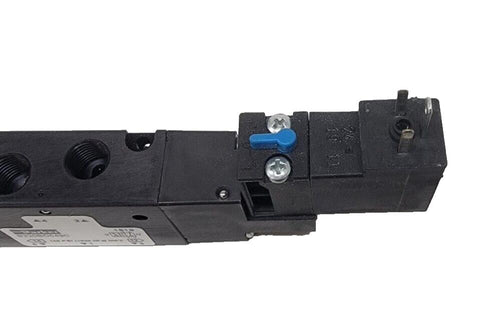

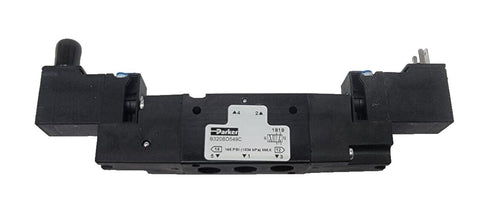

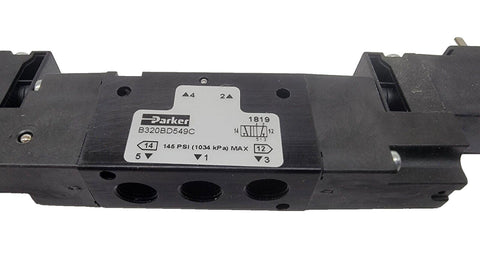

Item Solenoid Air Control Valve
Body Style Body-Ported, Inline
Series B3
Voltage 24V DC
Valve Actuator / Return Solenoid / Solenoid
Pilot Pressure 30 psi
Power Consumption 1.2 W
Coefficient of Volume 0.6
Center Position Closed
Body Material Aluminum
Override Non-Locking
Actuator/Return Solenoid/Solenoid
Electrical Connections 15mm, 3-Pin Male DIN
Valve Ways and Positions 4-Way/3-Position
Operational Pressure Range 20 to 145 psi
NEMA Classification NEMA 4
Valve Vacuum Range 0 to 28 in Hg
Ambient Temp. Range 5 Degrees to 120 Degrees F
Air Valve Type 4-Way, 3-Position
Max. CFM - Valves 0.75 cfm
Pressure Range 20 to 145 psi
Standards CE Certified, CSA Certified
Number of Ways Four-Way
Number of Positions Three-Position
Seal Material Nitrile
Operating Temperature - Minimum 5 Degrees F
Flow Rate - Maximum 18.75 cfm
Application Assembly Lines, Conveyance, Industrial, Packaging
Operating Pressure - Maximum 145 psi
Operating Temperature - Maximum 120 Degrees F
Response Time 22 msec
Number of Ports 5
Product Type Solenoid Air Control Valve
Body Features Single
Pilot Port Connection Type NPT
Pilot Type Internal Pilot
Vacuum Rating Not Vacuum Operable
Return Action Solenoid Return
Inlet Port Connection Type NPT
Inlet Port Connection Gender Female
Includes Solenoid Coil Solenoid Coil Included
Valve Type Spool
Coefficient of Volume (Cv) 0.75
Exhaust Port Connection Type NPT
NEMA Rating 4
Actuator Type Double Solenoid
Operating Pressure - Minimum 20 psi
Lubrication Lubrication Not Required
Spool Material Aluminum
Electrical Connection Type DIN Solenoid Connector
Poppet Material Aluminum
Pilot Port Connection Gender Female
For Media Air
