MFR Details:
| Manufacturer | Rockwell Automation |
|---|---|
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1791DS-IB4XOW4 |
| Manufacturer | Rockwell Automation |
| Part Number | 1791DS-IB4XOW4 |
| Power Consumption | 110 mA @ 24V dc |
| Brand | Allen-Bradley |

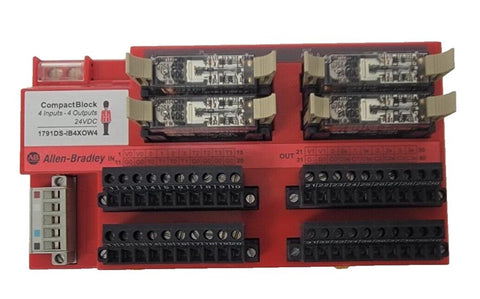

| Product Description | Guard I/O safety Module |
| Operating Voltage Range | 20.4-26.4V dc |
| Module Type | Safety Module |
| No. of Input channels | Four (4) Discrete inputs |
| Number of Inputs | 4 |
| Safety ratings | Safety Integrity Level 3 (SIL 3); Safety Category 4 of the EN 954-1 for safety machinery |
| ON voltage | 11V DC, min |
| Input Type | Single-Channel |
| Safety Inputs | Four (4) 11 VDC current sinking inputs |
| OFF voltage | 5V DC, max |
| On-State Input Voltage | 11V dc min. |
| Test Outputs | Four (4) Current sourcing outputs |
| OFF current | 1 mA, max |
| Off-State Input Voltage | 5V dc max. |
| Safety output | G7SA-2A2B EN50205 Class A |
| Input current | 6 mA |
| Number of Outputs | 4 |
| Relay output type | G7SA-2A2B EN50205 Class A |
| Output type | Current sourcing |
| Output Type | Current Sourcing |
| Relay durability, mechanical | 5,000,000 operations min |
| Rated output current | 0.7 A |
| Dimensions | 3.74 x 6.70 x 3.27 in. |
| Relay durability, electrical | 100,000 operations min |
| Minimum permissible load | 5V DC, 1 mA |
| Weight | 1.32 lb. |
| Conductors | • 0.2…2.5 mm2 (AWG 24…12) Solid wire • 0.34…1.5 mm2 (AWG 22…16 ) Standard (flexible) wire with insulation-covered bar terminal |
| Resistive load | 240V AC, 2 A 30V DC, 2 A |
| UPC | 10612598318909 |
| Communications power supply voltage | 11…25V dc (supplied from communications power supply) |
| Inductive load | 240V AC, 2 A (cos 0.3) ; 24V DC, 1 A |
| Communications current consumption | 110 mA at 24V dc |
| SIL Rating | SIL 3 |
| I/O power supply voltage | 20.4…26.4V dc (24V dc, -15…+10%) |
| Communication protocol | DeviceNet |
