Manufacturer: Texas Instruments
Product Category: Buffers & Line Drivers
RoHS:
Logic Family: LVC
Number of Input Lines: 1 Input
Number of Output Lines: 1 Output
Polarity: Non-Inverting
Package / Case: SC70-5
High Level Output Current: -
Low Level Output Current: 32 mA
Quiescent Current: 10 uA
Supply Voltage - Min: 1.65 V
Supply Voltage - Max: 5.5 V
Operating Supply Current: 10 uA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Mounting Style: SMD/SMT

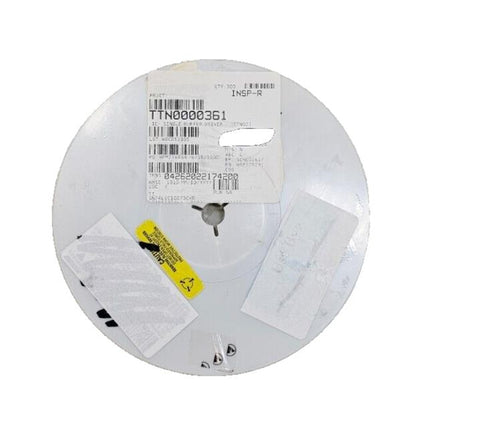

Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: Texas Instruments
Function: Buffer/Driver
Height: 0.9 mm
Input Signal Type: Single-Ended
Length: 2 mm
Logic Type: Monostable Multivibrator
Number of Channels: 1 Channel
Operating Supply Voltage: 1.8 V
Output Type: Open Drain
Product Type: Buffers & Line Drivers
Propagation Delay Time: 4.2 ns at 3.3 V, 3.5 ns at 5 V
Series: SN74LVC1G07
100
Subcategory: Logic ICs
Supply Current - Max: 10 uA
Technology: CMOS
Width: 1.25 mm
Unit Weight: 0.004586 oz
