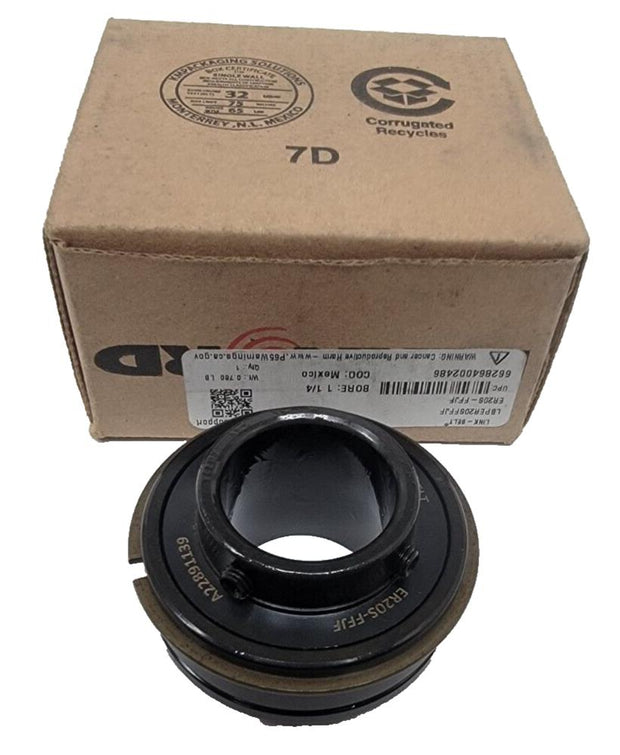

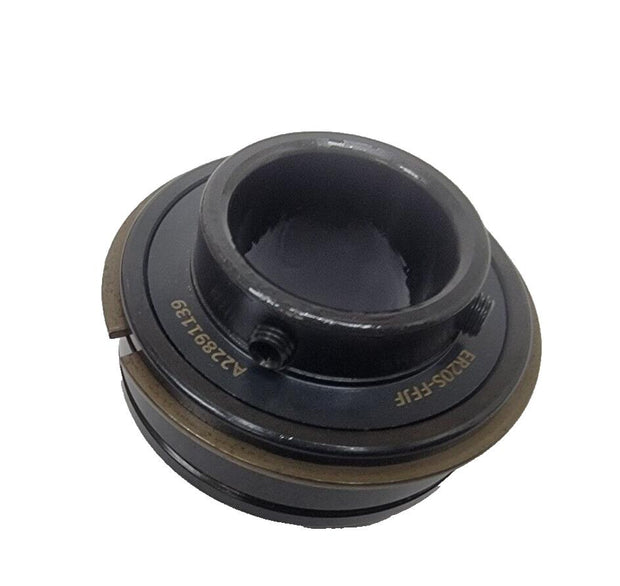

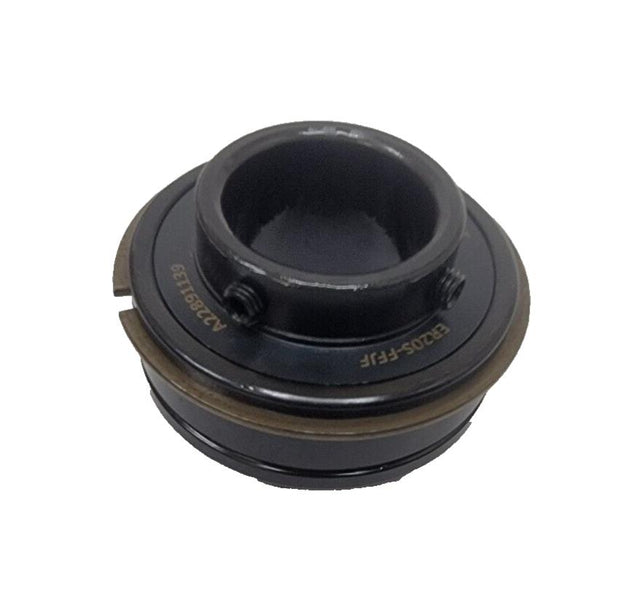

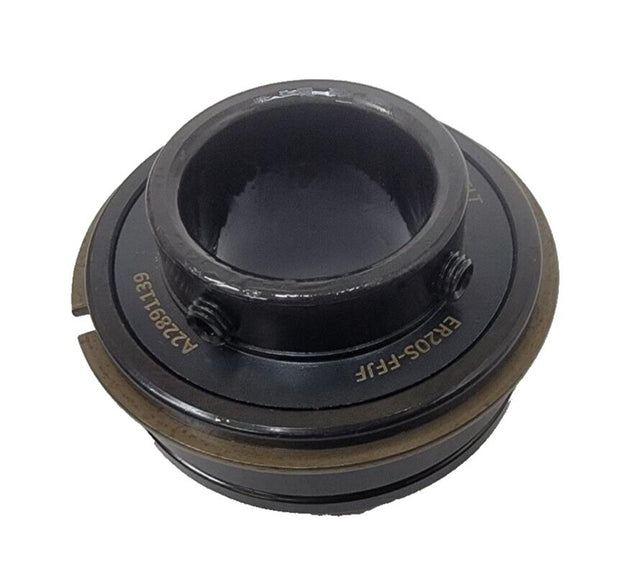

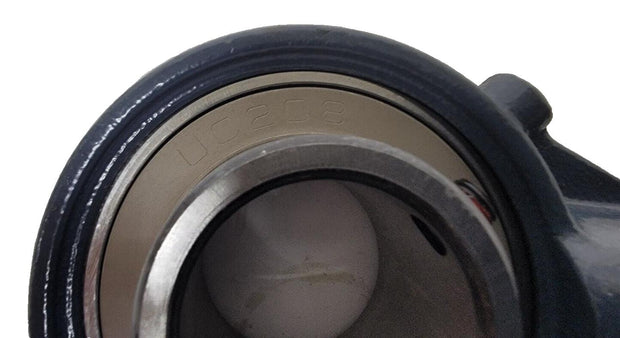

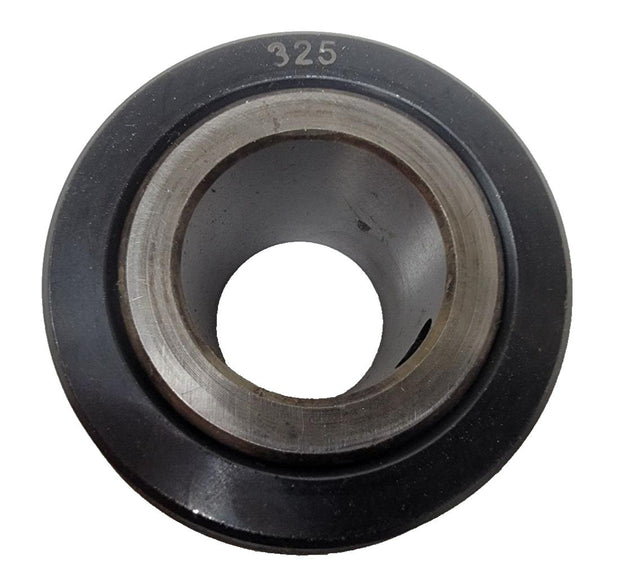

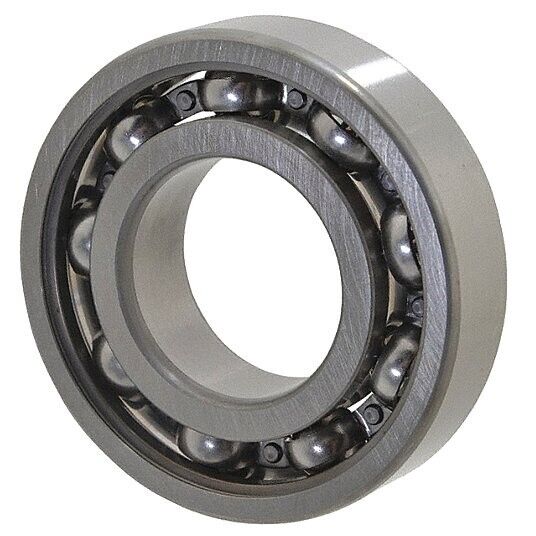

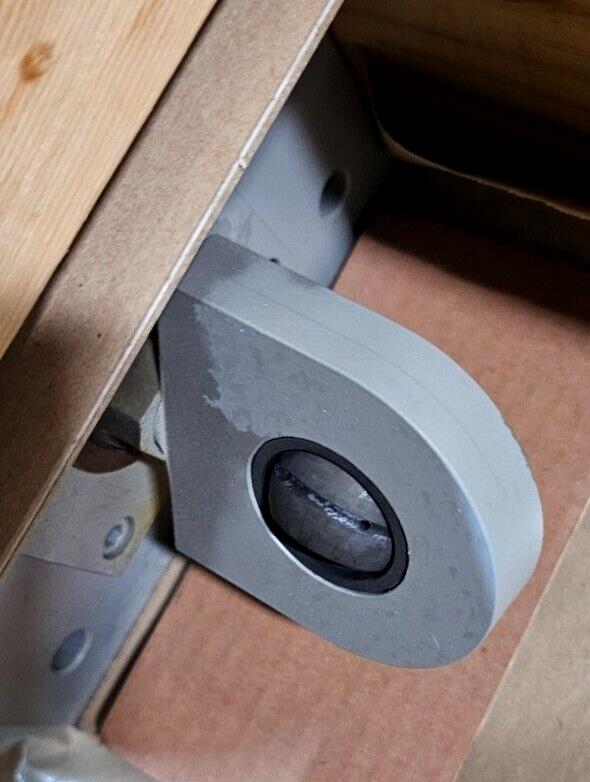

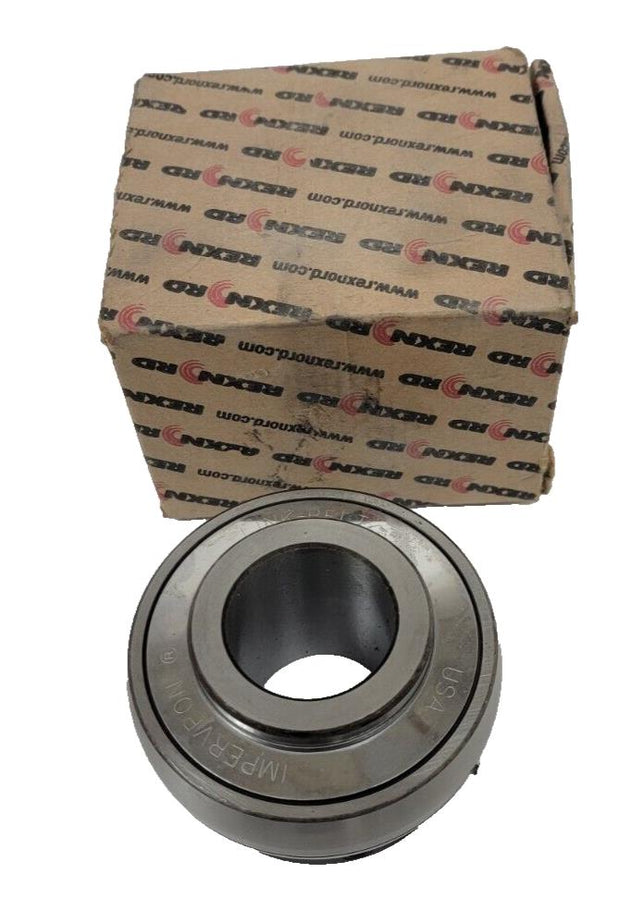

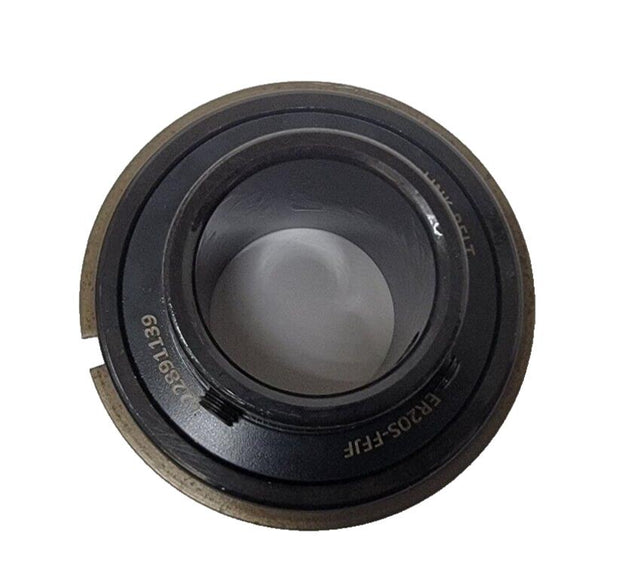

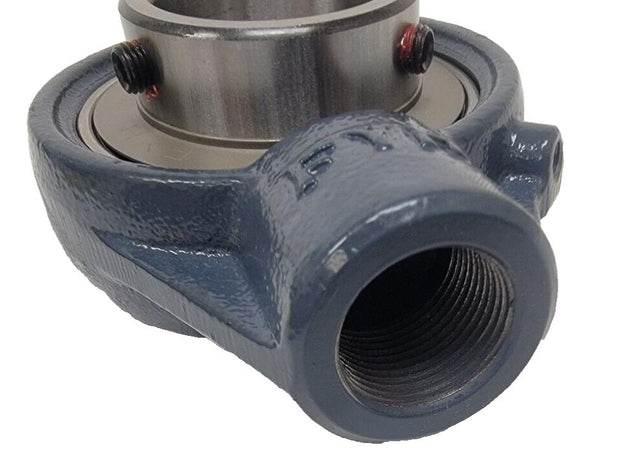

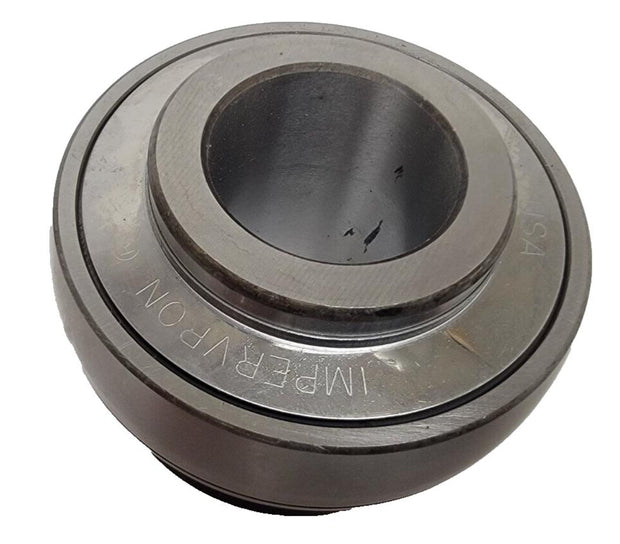

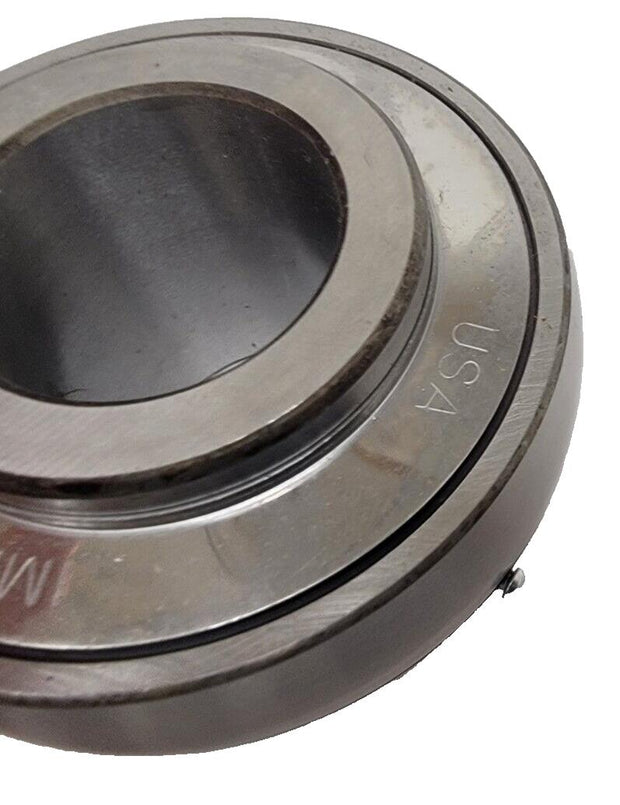

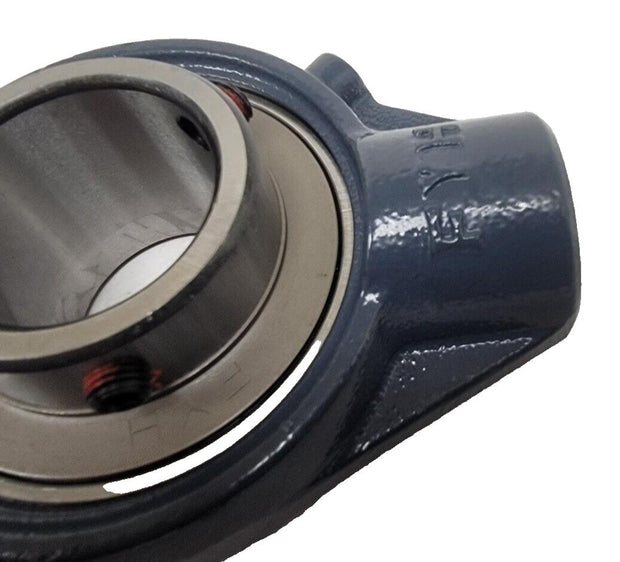

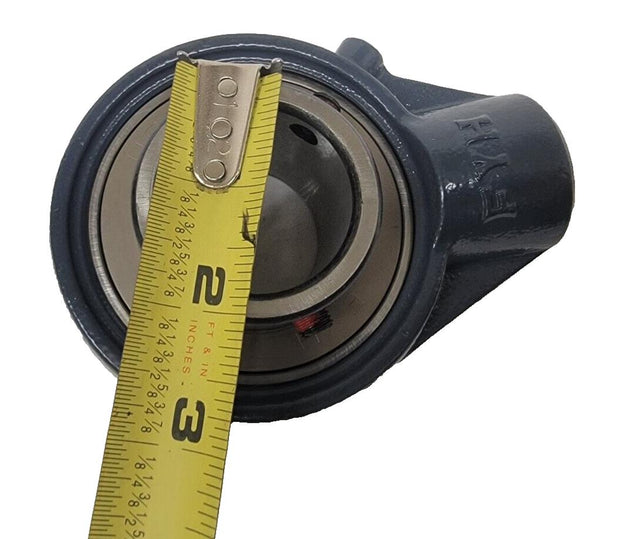

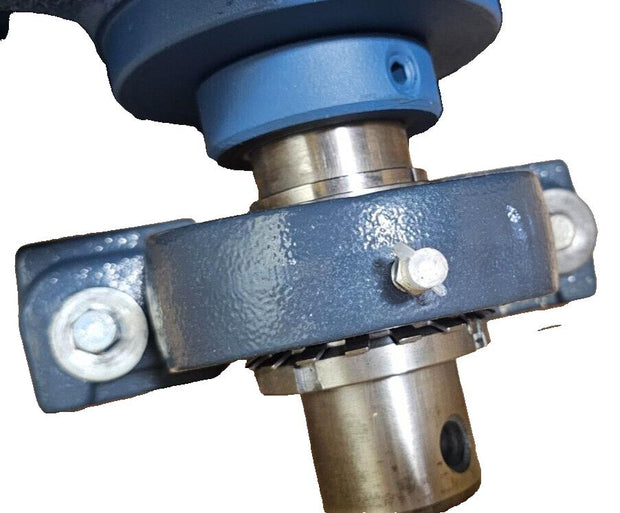

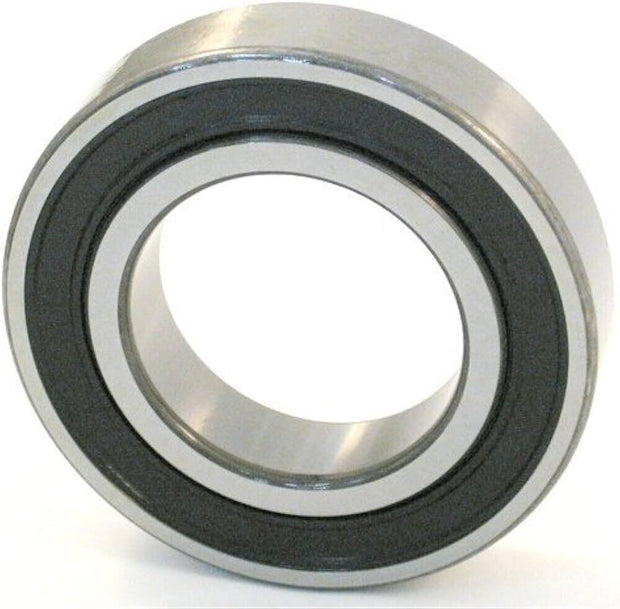

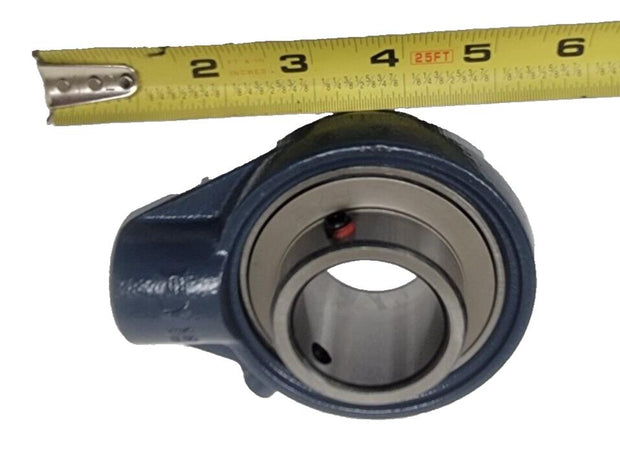

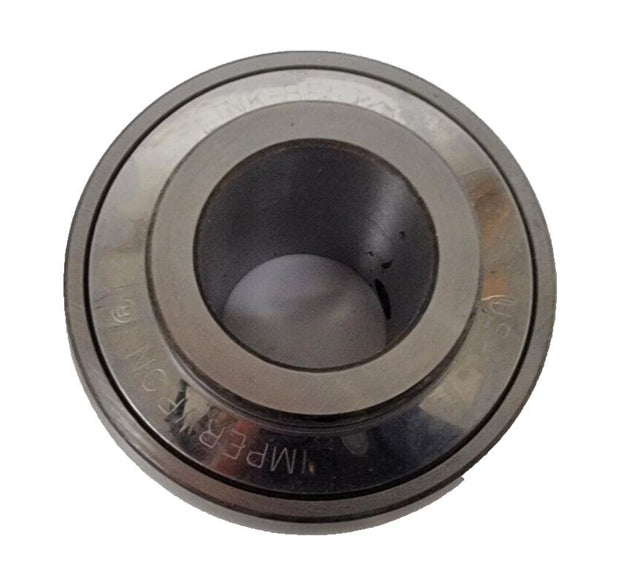

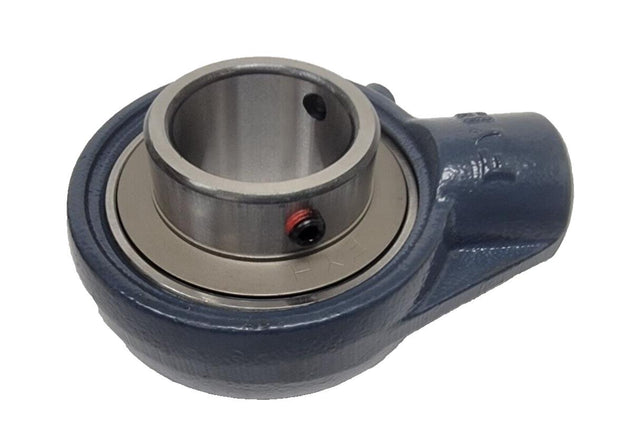

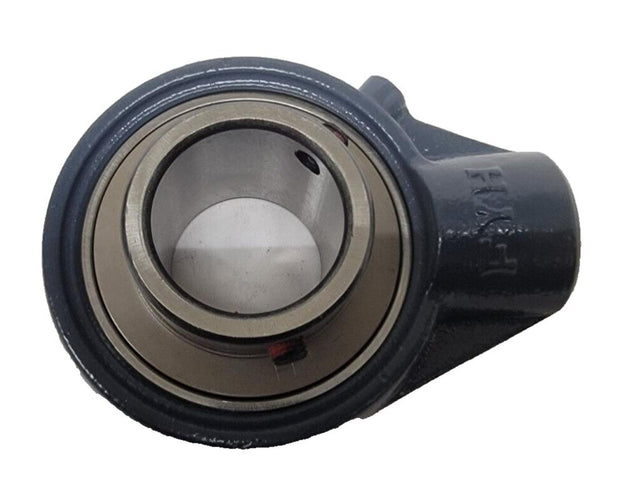

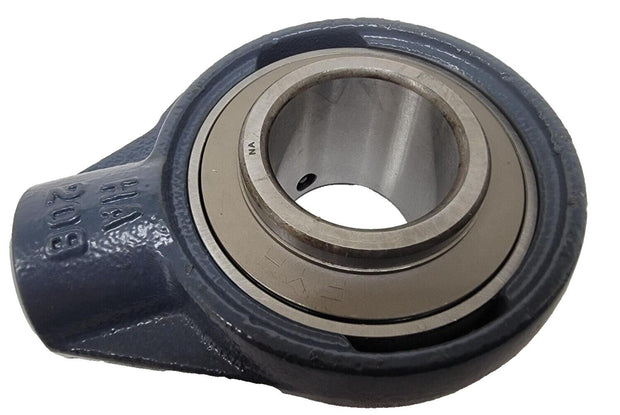

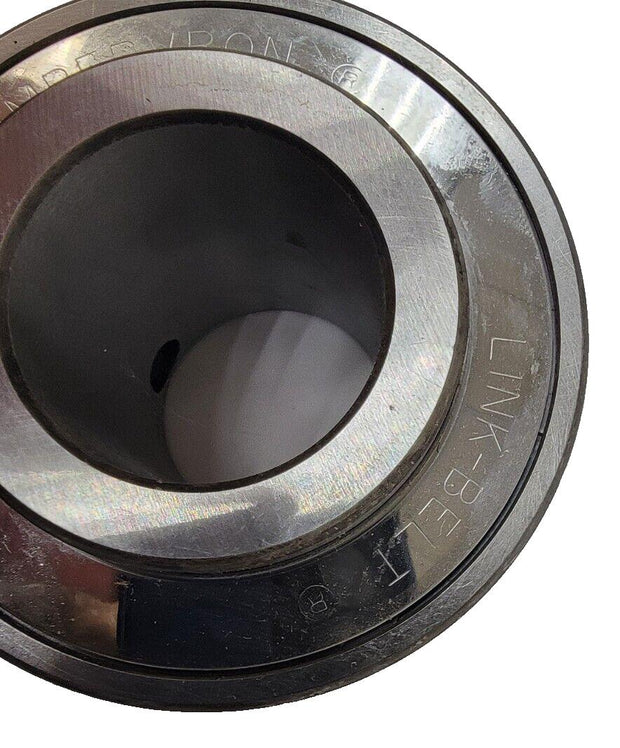

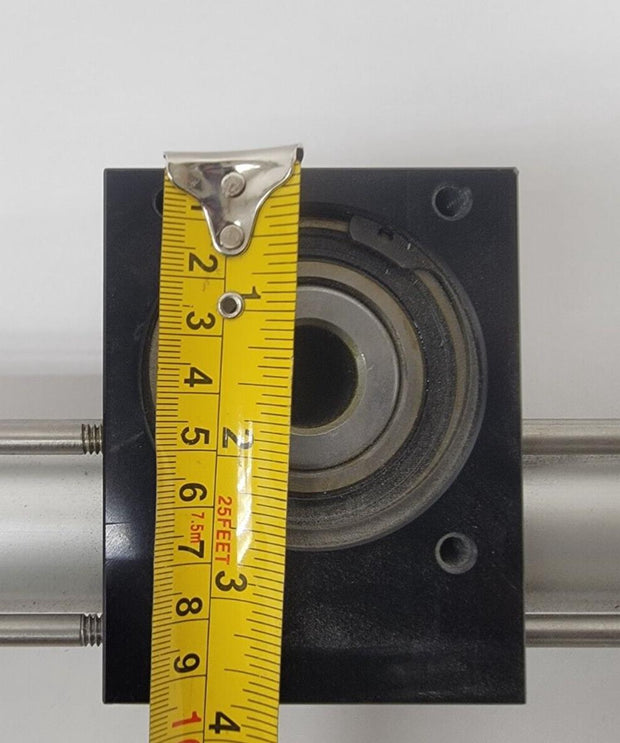

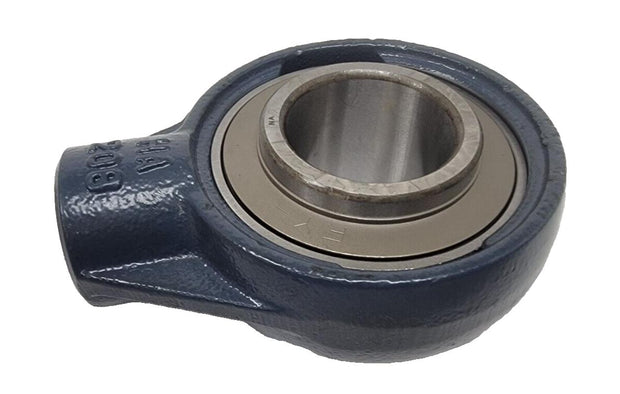

• Bore Size (in):1.25 in
• Locking Type:Set Screw
• Seal Type:Flingers Only - Free Running
• Available Seal Type:N Lip Seal;E1 Viton Seal;FF Free Running;HFF Free Running;MHFF Free Running;NFF Lip Seal w/ Flinger
• Bearing Coating Material:BLACK OXIDE
• Bore Length (in):1 1/2 in
• C Dynamic Load Rating:4390 lb
• Co Static Load Rating:2530 lb
• Distance from Inner Ring Long Hub Face to Centerline of Setscrew (in):1/4 in

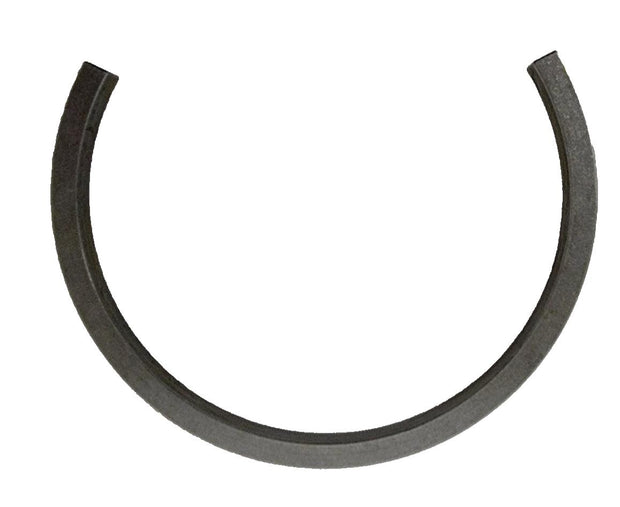

• Distance from Outer Ring Face to Snap Ring Face (in):3/32 in
• Height:2.00
• Inner Ring Fillet Radius (in):0.04 in
• Inner Ring Hub Diameter (in):1.587 in
• Length:3.00
• Lubrication Type:MOBIL VELOCITE #10 OIL
• Maximum Speed (RPM):9800 rpm
• Maximum Temperature (C):107 C
• Maximum Temperature (F):225 F
• Mounted Clearance:C3 STANDARD
• Net Weight:0.78
• Outer Ring Width (in):0.8740 in

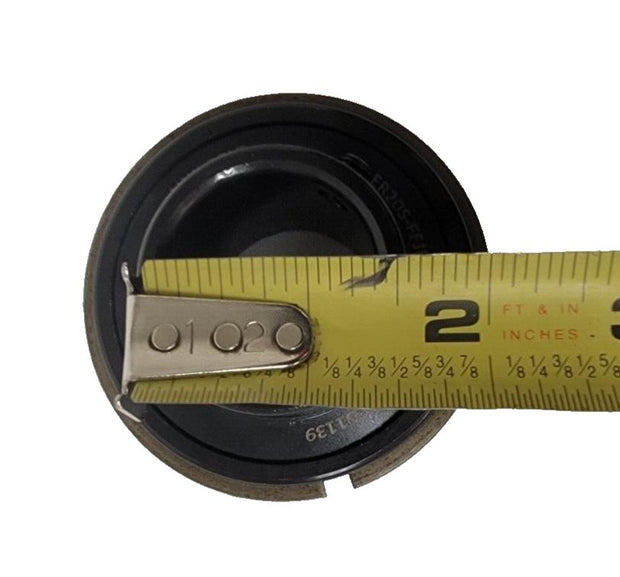

• Outside Diameter (in):2.44 in
• Primary Seal:FLINGERS ONLY
• Retainer Type:NYLON
• Setscrew Torque (in-lbs):87-92 in/lbs
• Short Hub Length (in):5/8 in
• Size Code:206

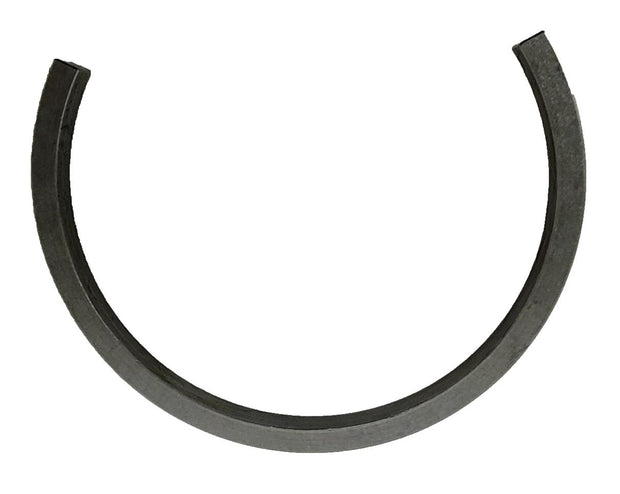

• Snap Ring Outside Diameter (in):2 21/32 in
• Snap Ring Width (in):3/64 in
• Special Lube Percent:50% OIL FILL
• Unit of Dimension:IN
• Vibration Frequency Fundamental Train:0.0067 cps
• Vibration Frequency Inner Ring Defect:0.0905 cps
• Vibration Frequency Outer Ring Defect:0.0595 cps
• Vibration Frequency Roller Spin:0.0385 cps
• Weight unit:LB
• Width:3.00

Technical Data

he FBM217 Discrete Input Interface Module is a device used for interfacing discrete input signals in industrial automation applications. Here are the key features and specifications of the FBM217:

Features:

1. Discrete Inputs: Provides 32 discrete input channels.
2. Voltage Range: Supports discrete input signals at voltages of:
   • 15 to 60 V dc
   • 120 V ac/125 V dc
   • 240 V ac
3. Redundancy: Can be used as a single module or in a redundant pair (two FBM217s) to enhance reliability.
4. Rugged Design: Designed for use in harsh Class G3 environments.
5. Program Execution: Executes programs for Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events, with configurable options for Input Filter Time and Fail-Safe Configuration.
6. Termination Assemblies (TAs): Various TAs available, providing high voltage attenuation and optical isolation for inputs, as well as external power connection for device excitation.

Functional Specifications:

• Input: 32 group-isolated channels.
• On-State Voltage: 15 to 30 V dc.
• Off-State Voltage: 0 to 5 V dc.
• Current: 2.2 mA (typical) at 30 V dc Input.
• Filter/Debounce Time: Configurable (No Filtering, 4, 8, 16, or 32 ms).
• Maximum Pulse Count Rate: 250 Hz.
• Isolation (Module/TA Combination):
  • Group isolation for certain TAs (P0916CA, P0916CB, P0916PW, P0916PX, P0916XZ).
  • Channel isolation for others (P0916PS, P0916PT, P0916YA, P0916PY, P0916PZ, P0916YB).
• Communication: Communicates with its associated FCM or FCP via the module Fieldbus.
• Power Requirements:
  • Input Voltage Range (Redundant): 24 V dc ±5%, -10%.
  • Consumption: 3 W (maximum) at 24 V dc.
• Environmental Specifications:
  • Operating Temperature: -20 to +70°C (-4 to +158°F).
  • Relative Humidity: 5 to 95% (non-condensing).
  • Altitude: -300 to +3,000 m (-1,000 to +10,000 ft).

The HART Communication Output Module (FBM215) contains eight channel-isolated outputs. The FBM215 supports any mix of standard 4 to 20 mA devices and HART devices. The FBM215 serves as a HART communications field device host, enabling the Foxboro Evo system to request and receive two digital messages per second from each field device. The message pass-through capability can be used to support HART universal, common practice, and device-specific commands, but not the burst communication mode.

FEATURES

Key features of the FBM215 module are:

-Eight channel-isolated output channels, each providing one of the following outputs:

 • Standard 4 to 20 mA analog output signal

• Digital HART Frequency Shift Keying (FSK) signal superimposed on a 4 to 20 mA analog output signal

FSK modem dedicated to each output channel for bi-directional digital communications with a HART field device

Galvanic isolation of all output channels from each other, and from ground and module logic

Support for HART universal commands necessary to interface the field device with the Foxboro Evo system database

Rugged design suitable for enclosure in Class G3 (harsh) environments

Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM215.

The FBM215 has a rugged extruded aluminum exterior for physical protection of the circuits. Enclosures specially designed for mounting the FBMs provide various levels of environmental protection, up to harsh environments per ISA Standard S71.04.

VISUAL INDICATORS

Light-emitting diodes (LEDs) incorporated into the front of the module provide visual indication of the module’s operational status, and communication activity of the channels.

EASY REMOVAL/REPLACEMENT

The module can be removed/replaced without removing field device termination cabling, power, or communications cabling.

FIELDBUS COMMUNICATION

A Fieldbus Communication Module or a Control Processor interfaces the redundant 2 Mbps module Fieldbus used by the FBMs. The FBM215 module accepts communication from either path (A or B) of the redundant 2 Mbps fieldbus – should one path fail or be switched at the system level; the module continues communication over the active path.

MODULAR BASEPLATE MOUNTING

The module mounts on a modular baseplate, which accommodates up to four or eight FBMs. The modular baseplate is either DIN rail-mounted or rack mounted, and includes signal connectors for redundant fieldbus, redundant independent DC power, and termination cables.

FEATURES

Key features of the FBM244 module are:

- Four 0 to 20 mA analog input channels, used for a HART analog sensor input such as a 4 to 20 mA transmitter or a self-powered 20 mA source

- Four analog output channels, used to drive an external load and produce a 0 to 20 mA output

- Support for the HART universal commands necessary to interface the field device with the

Foxboro Evo system database Both inputs and outputs are galvanically isolated

- Compact, rugged design suitable for enclosure in Class G3 (harsh) environments

- Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM244

- Termination Assemblies for per channel internally and/or externally loop powered transmitters.

COMPACT DESIGN

The FBM244 module has a compact design, with a rugged extruded aluminum exterior for physical protection of the circuits. Enclosures specially designed for mounting the FBMs provide various levels of environmental protection, up to harsh environments per ISA Standard S71.04.

EASY REMOVAL/REPLACEMENT

The modules can be removed/replaced without removing field device termination cabling, power or communications cabling.

VISUAL INDICATORS

Light-emitting diodes (LEDs) incorporated into the front of the modules provide visual status indications of Fieldbus Module (FBM) functions.

MODULAR BASEPLATE MOUNTING

The modules mount on a modular baseplate or conversion mounting structure which accommodates up to four or eight FBMs. The modular baseplate is either DIN rail mounted or rack mounted, and includes signal connectors for redundant fieldbus, redundant independent dc power, and termination cables.

FIELDBUS COMMUNICATION

A Fieldbus Communication Module or a Control Processor interfaces the redundant 2Mbps module Fieldbus used by the FBMs. The FBM244 module accepts communication from either path (A or B) of the redundant 2Mbps fieldbus – should one path fail or be switched at the system level, the module continues communication over the active path.

SIIG’s CyberSerial Dual PCIe is designed to add two 9-pin serial ports to PCI Express-enabled desktop computers. This PCIe serial adapter comes with two high-speed 16950 UART serial ports to support baud rates up to 15 Mb/s, and its built-in 128-byte buffers dramatically increase data transfer rates especially under Windows’ multi-tasking environment. The serial port can work as either a standard RS-232 port, or can be configured with 5V/12V power output for devices that require power such as handheld scanners, table scanners, POS displays, etc.

The CyberSerial Dual PCIe features a 4-layer PCB (with separate layers for data and ground) to greatly reduce signal noise and loss, and enhanced bend-resistant brackets to provide a secure connection to the system. Additionally, this dual profile serial adapter works with PCI Express slot with different lane widths and with the included low profile brackets, the CyberSerial Dual PCIe can be installed in either standard height or low profile systems.

SIIG’s CyberSerial Dual PCIe is powered by Oxford chip and conforms to PCI Express Base Specification, Revision 1.1. It is also FCC Class B (DoC) & CE regulatory approved and RoHS-compliant, and is fully compatible with a wide variety of Windows operating systems.

Model

Brand  SIIG

Model  JJ-E10D11-S3

Details

Type     PCI Express to Serial Port Card

External Ports Two 9-pin Serial Ports

Operating Systems Supported          Windows 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000

Specifications            Regulatory approval(s): FCC Class B (DoC) & CE

RoHS-compliant

Chipset: Oxford OxPCIe952

Compliant with PCI Express Base Specification Revision 1.0a

Built-in 128-byte FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment

4-layer PCB board: separate layers for data & grounding. Greatly reduces signal noise & loss. Delivers more reliable high-speed data transfers

Enhanced bracket design to prevent bending. Connected to PCB with washered screws for a more secure connection

Features

Features          PCI Express 1-lane (x1) adapter works with PCI Express slots with different lane width

Installs in any available PCI Express slot and provides two 9-pin RS232 serial ports

128-byte buffer dramatically increase data transmit/receive speed and supports data rates up to 920 Kbps

Works as standard RS232 port or with 5V or 12V power output for devices that require power

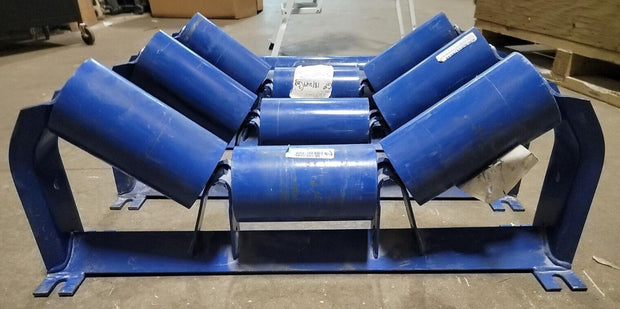

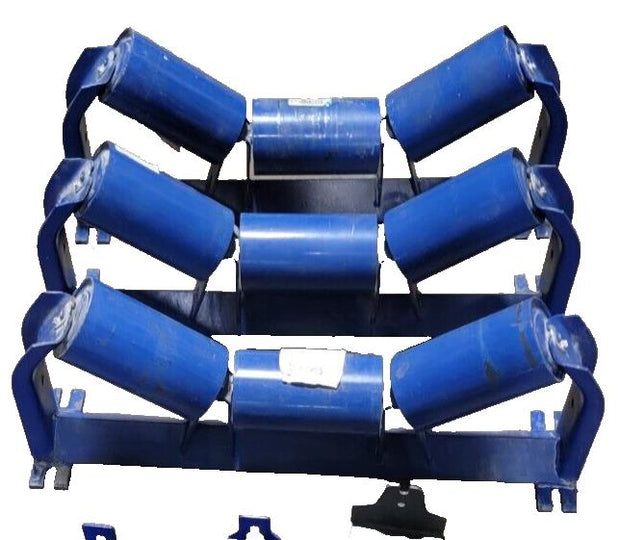

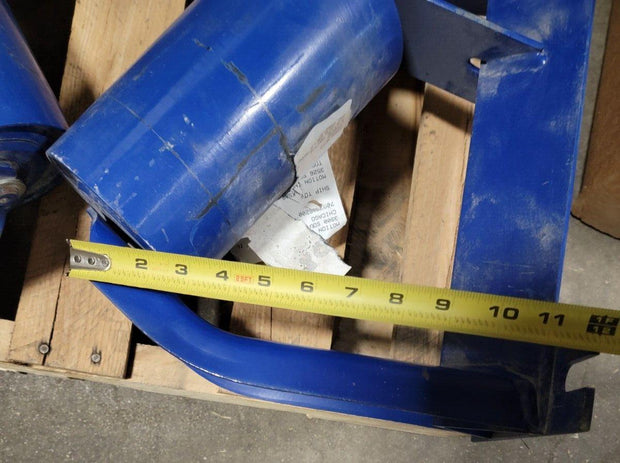

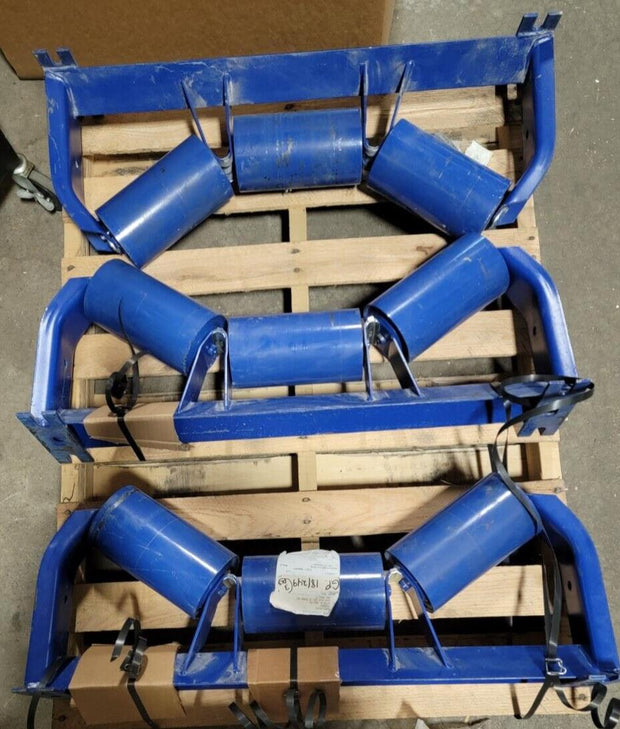

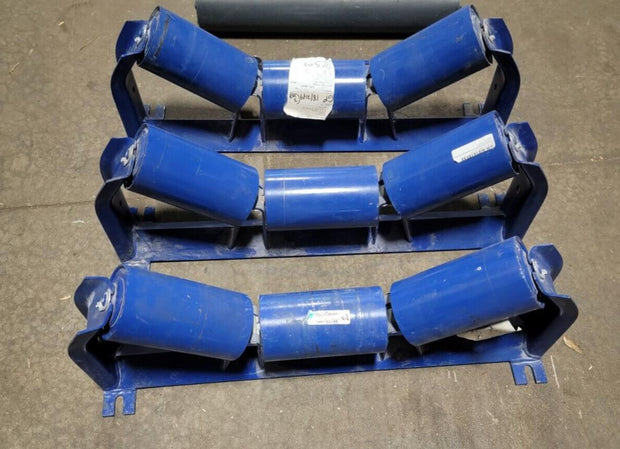

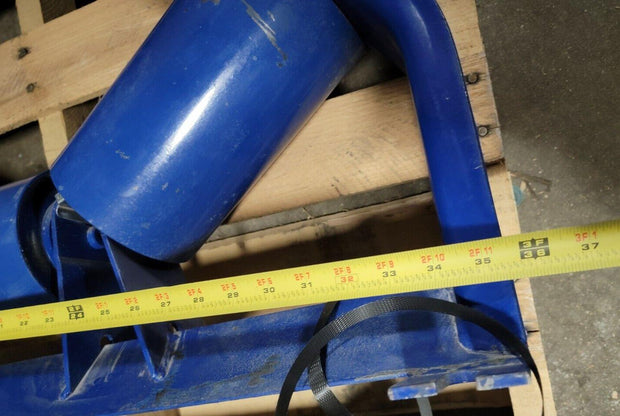

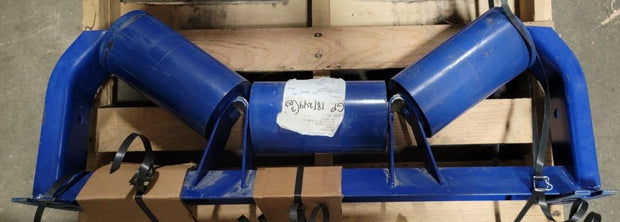

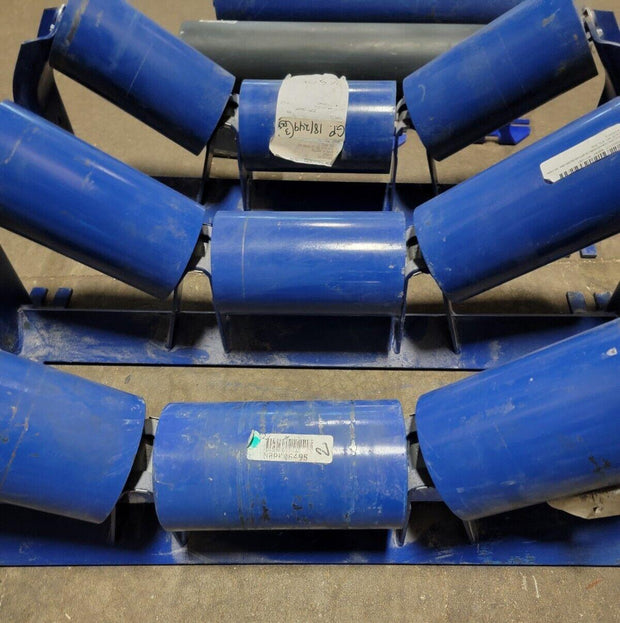

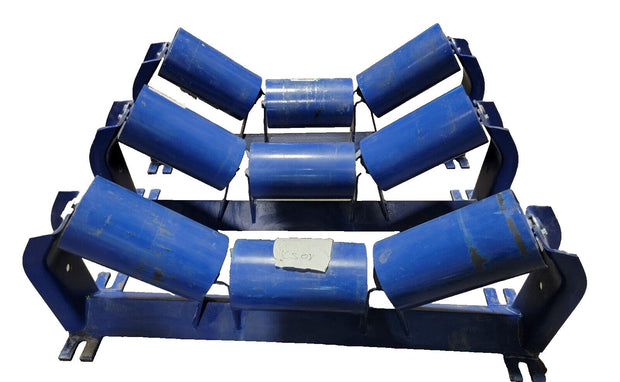

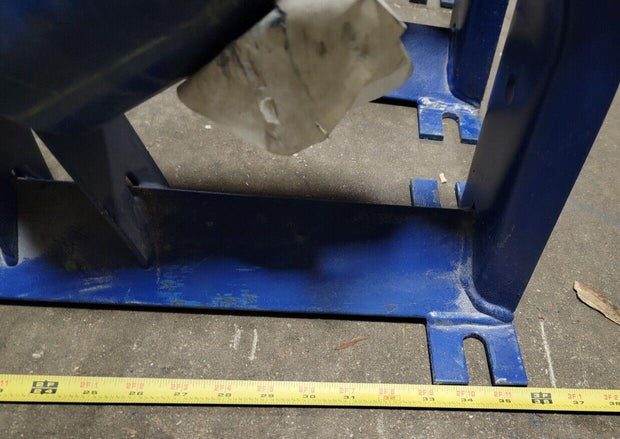

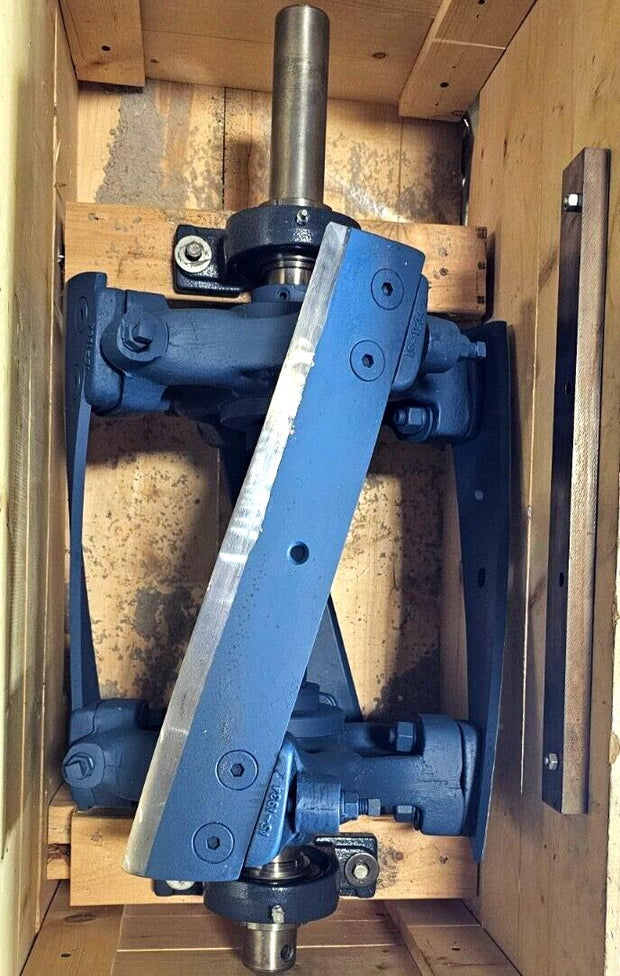

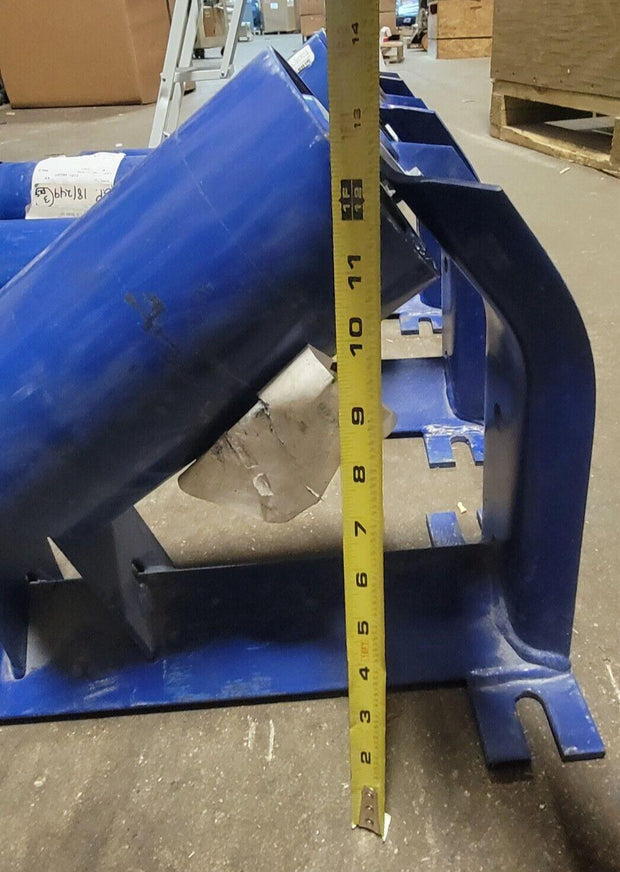

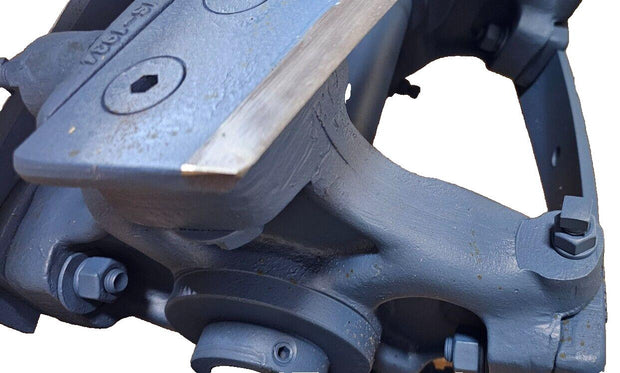

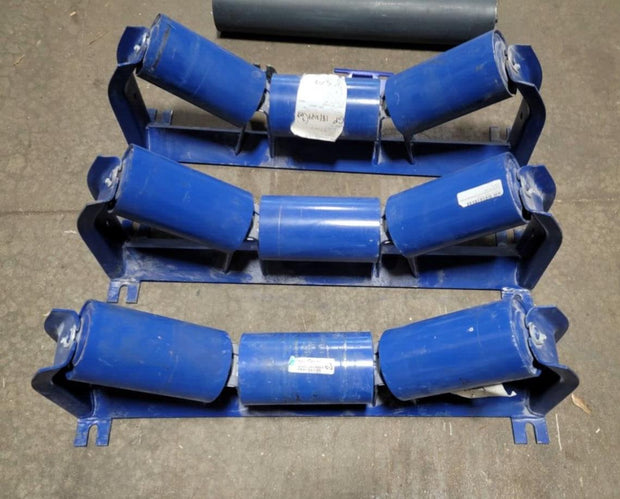

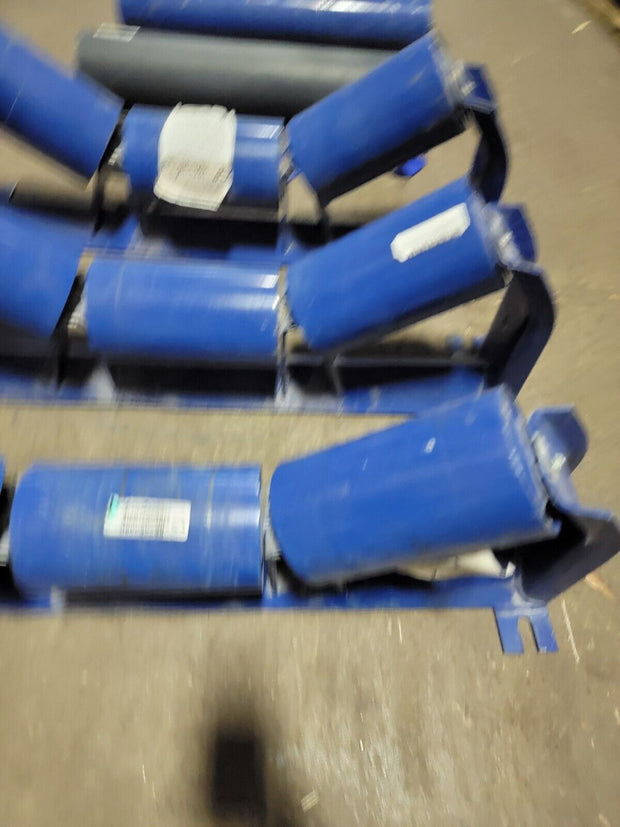

• 24 in Belt Width
• 5 in Roller Diameter
• Trougher Equal Idler Type
• CEMA Class C - Medium Duty Cema Class
• 35 degrees Trough Angle

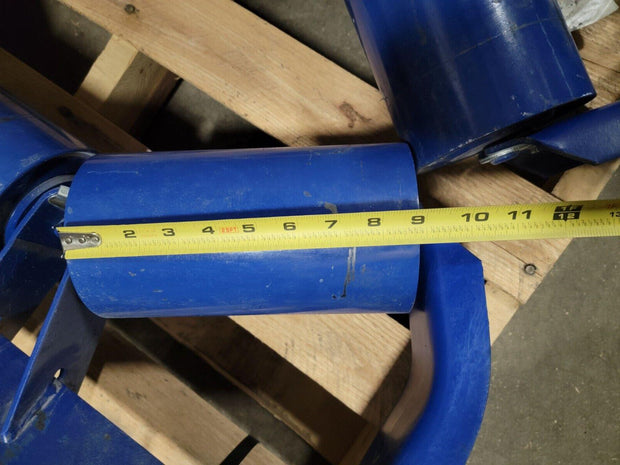

8.94 in Roller Length
