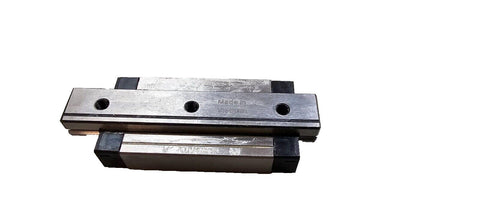

Removed from packaging, prepped for install, but never installed. Greased up and ready to rock. 30-day guarantee.
| Set/Single Item | Set | Block Type | Super Long Block-No Dowel Hole |
|---|---|---|---|
| Number of Blocks | 1 | Rail Type | Standard |
| Rail Width W1(mm) | 12 | Unit Height H(mm) | 13 |
| Material | Stainless Steel | Rail Length L(mm) | 70 |
| Preload | [Light Preload] Light Preload | Accuracy Standards | High Grade |
| Ball Arrangement | Miniature Type | Retainer | Available |
| Rolling Element | Ball | Basic Load Rating: Dynamic(N) | 3600 |
| Basic Load Rating: Static(N) | 7600 | Allowable Static Moment MA(N⋅m) | 34.0 |
| Allowable Static Moment MB(N⋅m) | 34 | Allowable Static Moment MC(N⋅m) | 47.3 |
| Nominal Part Number | 12 | Lubrication Type | Special Grease (Clean Room) - G Type |
| L Dimension Type | Standard Type | Surface Finish | None |
| Nominal No. | - | Block Mounting Hole Pitch (Width direction)(mm) | 20 |
| Block Mounting Hole Pitch (Length direction)(mm) | 30 | Block Mounting Hole Diameter | M3 |
| Rail Mounting Hole Pitch(mm) | 25 | Rail Mounting Hole Diameter | 3.5 |
| Lubrication Unit (MX) | Without Lubrication Unit | Changes the rail mounting holes from counterbored holes to tapped holes. | MC |
| RoHS | 10 |
